Cylinder Head Alignment Dowel Pin Buying Guide — Cheap OEM Replacement Parts for Sale | REVXSC
Looking for cheap cylinder head alignment dowel pins that won't fail in 6 months? Whether you're chasing ford 5.0 head dowel pin location, stuck cylinder head dowel pin removal, head alignment dowel size ford v8, replace cylinder head alignment pin, dowel pin sheared in block, this guide covers what to buy, what to skip, and how to make sure the part you order actually fits your truck or car. Every cylinder head alignment dowel pin sold at REVXSC ships with a verified year/make/model/engine fitment table — no guessing.
What cylinder head alignment dowel pins actually do
In one sentence: the small precision steel pin that locates the cylinder head in exact position on the engine block before head bolts are torqued. When they wear out, you'll typically feel it before you see it — your car starts telling you something is wrong, and ignoring it gets expensive.
Signs you need new cylinder head alignment dowel pins
- coolant or oil leak at the head gasket
- misaligned head gasket on disassembly
- broken or sheared pin in block deck
- bent or seized dowel preventing head removal
- uneven head gasket compression
If you tick more than one box, replace before it leaves you on the side of the road. The repair gets a lot cheaper when you catch it early.
Also known as
Depending on the shop manual, region, or supplier you're reading, cylinder head alignment dowel pins are also called: head dowel, head locating pin, block dowel pin, head alignment pin, deck dowel. They all refer to the same component — when you're cross-referencing OEM and aftermarket part numbers, watch for these naming variations so you don't double-order the same item.
How much should you pay?
Online direct-ship from REVXSC undercuts dealer parts counters significantly. We carry quality replacement cylinder head alignment dowel pins from Fel-Pro, Mahle, Clevite, Enginetech, Sealed Power, Pioneer, ARP, Dorman — every listing shows the price, the fitment chart, and real product photos. No mystery part numbers.

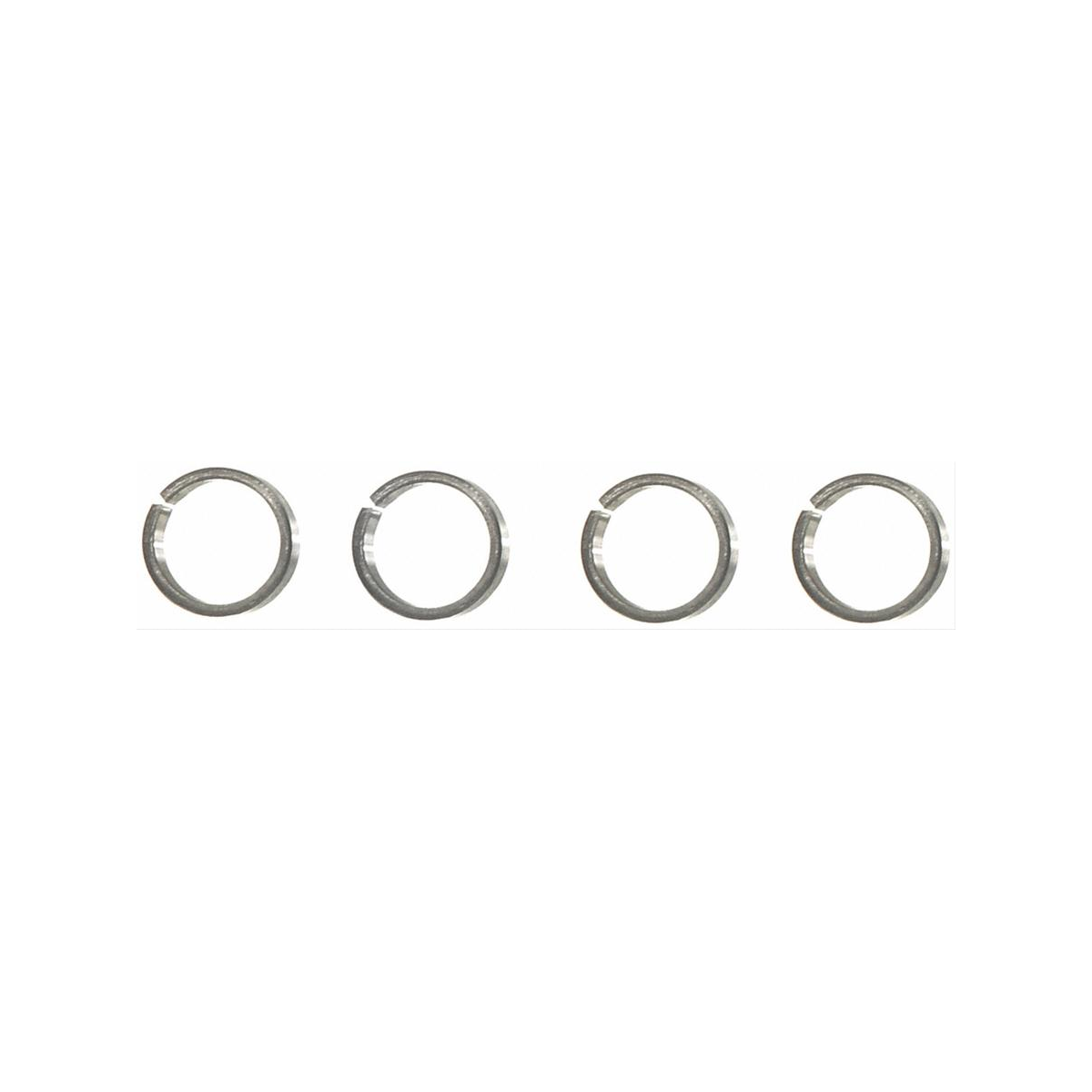

Featured cylinder head alignment dowel pins in stock right now
Shop all Cylinder Head Alignment Dowel Pin →
OEM vs aftermarket: which to choose
For cylinder head alignment dowel pins, the brand actually matters. Fel-Pro and Mahle supply major automakers as OEM suppliers — when you buy their boxed retail product, you're getting the same engineering and tolerances. Replacements come as standard steel dowels matched to OE diameter or hardened upgraded pins from Fel-Pro and Mahle for high-output rebuilds..
Install: DIY or shop?
Difficulty: intermediate. Bay time runs about 10–30 minutes with the right tools. Lifespan you should expect: lifetime of engine if undisturbed.
How REVXSC keeps prices low
Every listing includes a year/make/model/engine table.
ACDelco, Bosch, Dorman, Dayco, FEL-PRO and more.
Ships from US warehouses with real tracking.
No knockoff boxes, no rebranded junk.
Cylinder Head Alignment Dowel Pin shipping to every US state
REVXSC ships cylinder head alignment dowel pins same-day from US fulfillment to every state. Whether you're chasing salt-corroded cylinder head alignment dowel pins in the Midwest, heat-fatigued parts in the Southwest, or just need a fast OEM-grade replacement, every order ships from the US with tracking. We deliver to:
Common questions Americans ask about cylinder head alignment dowel pins
What is a cylinder head alignment dowel pin?
A cylinder head dowel pin is a precision steel pin pressed into the engine block deck that locates the cylinder head in exact position before the head bolts are installed and torqued. Most V8 engines use two dowels per cylinder bank.
Can I install a cylinder head without dowels?
No. Without dowels, the head can shift during torquing, which crushes the head gasket unevenly and causes immediate compression and coolant leaks. Always confirm the dowels are present and in good condition before lowering the head.
How do I remove a stuck cylinder head dowel pin?
Soak the pin with penetrating oil, then grip it with locking pliers and twist while pulling upward. Severely stuck pins may require a dowel puller, a stud extractor, or careful drilling and tapping for an internal slide hammer.
How much does a cylinder head dowel pin cost?
Individual dowel pins run $2 to $8 each. Most engines need only two to four per head. Complete head bolt kits often include new dowels. Buying loose from Fel-Pro or Enginetech is the cheapest option.
Should I replace dowel pins during a head gasket job?
Inspect each pin for straightness, scoring, and corrosion. If they are clean and undamaged, reuse is fine. Any pin that's bent, scored, rust-pitted, or had to be heavily pulled should be replaced for proper head alignment.
What happens if a dowel pin shears off?
A sheared dowel inside the block deck must be drilled or extracted before the new head can sit flat. Leaving a sheared pin causes the head to ride high on one side, immediately blowing the head gasket on first startup.
Where are cylinder head dowel pins located?
Most American V8 engines locate dowels at the two extreme corners of each cylinder head bank, where they project from the block deck surface and engage matching counterbores in the cylinder head.
Do all engines have head dowel pins?
Nearly all production engines use dowels for accurate head alignment, though the number and location varies. Some racing engines use additional dowels for extra positioning accuracy. A few small motorcycle and lawn engines rely on bolts alone.
Can I drive in a new dowel pin with a hammer?
Tap a new dowel into place gently with a brass or plastic-faced hammer to avoid mushrooming the top. The pin should press in straight and protrude exactly to spec. Excessive driving force usually means the bore needs cleaning first.
Top US searches for cylinder head alignment dowel pins
Most-searched phrases from American shoppers comparing cylinder head alignment dowel pins this year — all of these are served by what REVXSC stocks:
This guide is updated as our cylinder head alignment dowel pin inventory and fitment data change. Last reviewed 2026-06-28.
